- Product Title: Audio board upgrade for RGBtoHDMI - HDMI adaptor
- Manufacturer/Publisher: DB & IB
- Stock Code: DB-IB-A
- QuickCode: 21053
- Format: Hardware
- Product Group: RGBtoHDMI Adaptors
- Condition: New
- Availability: Usually available from stock
- Description:

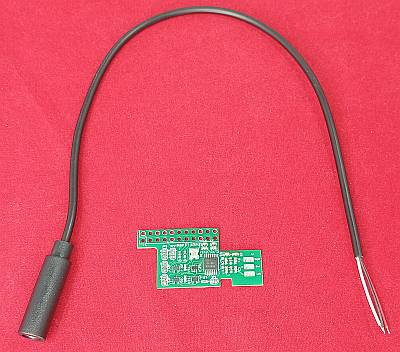

Audio board upgrade for Official RGBtoHDMI CPLD board with cable terminating in a 3.5mm stereo jack socket.

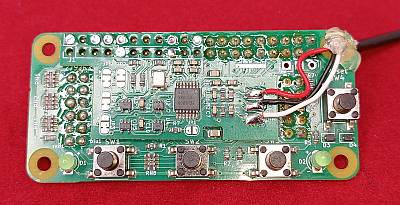

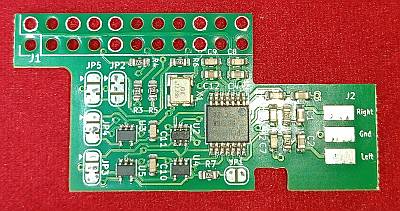

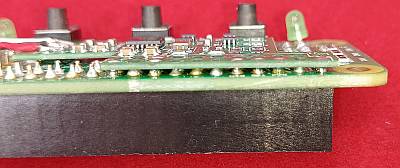

The audio board is soldered, piggy-back style, to the top of the CPLD board by soldering to the GPIO socket pins. The audio cable will need threading through the top right mounting hole on the CPLD board and then soldering to the audio board.

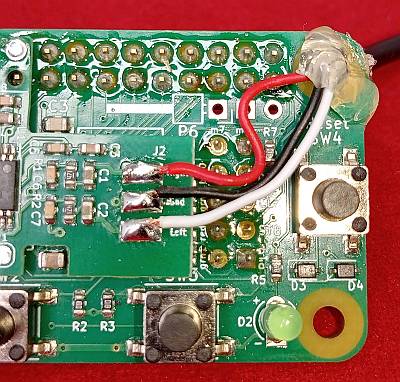

We recommend drilling out the top right CPLD mounting hole, as in the photos, to 3.2mm, this will enable the cable to exit the case easily and provide some strain relief, a blob of hot glue should help hold it in postion to get the best results.
RGBtoHDMI CPLD board Pi Zero, microSD Card and case not included.
An update to the SD Card to support audio can be downloaded from here
Open source hardware and software by David Banks & Ian Bradbury
https://github.com/IanSB/RGBtoHDMI
(c) 2018-2023 David Banks & Ian Bradbury
Full documentation is available here
- Price: £20.00 no UK VAT to pay!
- Free UK delivery on orders of £40 or more! (exceptions apply)
|
