Audio board upgrade for RGBtoHDMI - HDMI adaptor for Mono/Lumacode board

Product Title: Audio board upgrade for RGBtoHDMI - HDMI adaptor for Mono/Lumacode board

Manufacturer/Publisher: DB & IB

Stock Code: DB-IB-A-ML

QuickCode: 21054

Format: Hardware

Product Group: RGBtoHDMI Adaptors

Condition: New

Availability: Usually available from stock

Description:

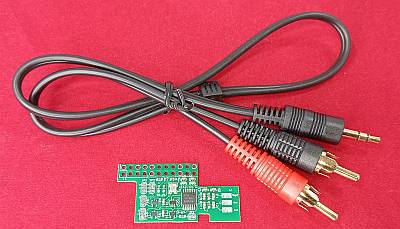

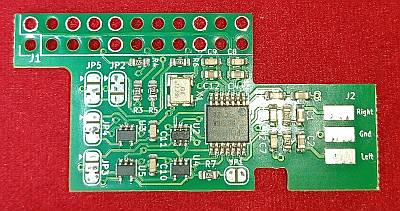

Audio board upgrade for Official Mono/Lumacode RGBtoHDMI CPLD board with 3.5mm stereo jack plug to two phono plugs (Video and Audio) cable.

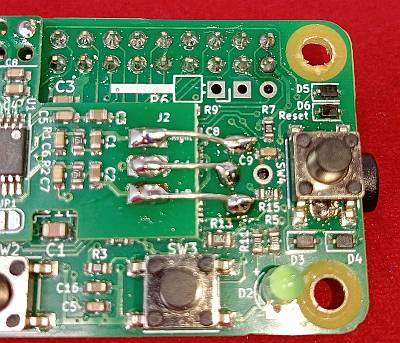

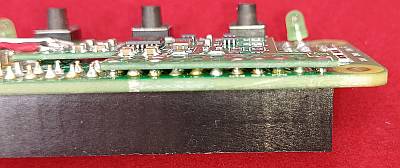

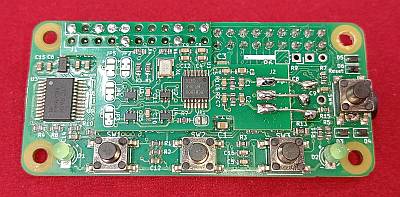

The audio board is soldered, piggy-back style, to the top of the CPLD board by soldering to the GPIO socket pins. The audio board needs to be linked to the 3.5mm jack socket on the CPLD board with 3 short jumper wires, as in the photos.

Mono RGBtoHDMI CPLD board, Pi Zero, microSD Card and case not included.

An update to the SD Card to support audio can be downloaded from here

Open source hardware and software by David Banks & Ian Bradbury
https://github.com/IanSB/RGBtoHDMI

(c) 2018-2023 David Banks & Ian Bradbury
Full documentation is available here

Price: £20.00 no UK VAT to pay!
