4D product information for
USB/Power & HDMI cable/lead Set Atrix Lapdock to Raspberry Pi A/B etc. plus Real Time Clock with SuperCaps
- Product Title: USB/Power & HDMI cable/lead Set Atrix Lapdock to Raspberry Pi A/B etc. plus Real Time Clock with SuperCaps
- Manufacturer/Publisher: Fourth Dimension
- Stock Code: 4D-RPI-ATRIX-PI-CS-RTCSC
- QuickCode: 18283
- Format: Hardware
- Product Group: Raspberry Pi: Misc. inc. Spares
- Condition: New
- Availability: Usually available from stock

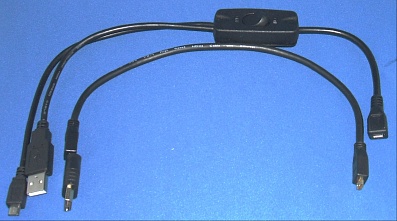

Two cables: Switched USB Power/Data lead, HDMI cable/Adaptor and Real Time Clock with SuperCaps!
*** Switched USB Power/Data lead ***

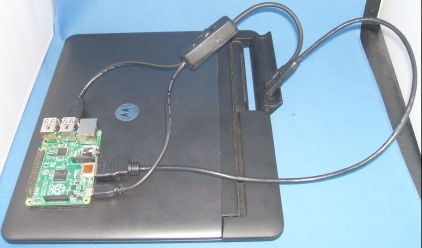

USB cable Atrix Lapdock to Raspberry Pi etc. including power switch.
End to end 27cm, cable length 19cm (Approximate, may very slightly)
Connects the microUSB on an Atrix Lapdock to Raspberry Pi Rev.2 USB port, providing a USB connection and switched power.
Also includes Real Time Clock with SuperCaps fitted so that power is not cut momentarily when opening/closing the lid of the LapDock.
Not suitable for Rev.1 Raspberry Pi's which need to be powered via their microUSB socket, or Model B+ which does not support back powering.
microUSB B Female to USB A Male
*** HDMI cable/Adaptor ***
Special cable and adaptor that connects an Atrix Lapdock's microHDMI Male to an HDMI output device such as a Raspberry Pi
Due to difficulty in supply, the cable and adaptor may be of three types, they all connect a Raspberry Pi's HDMI output to a Motorola Lapdock.
Cable adaptor Type A
Plugging into the Raspberry Pi an HDMI male cable (approximately 50cm) to microHDMI Male, plugged into a microHDMI Female to microHDMI Female which plugs into the LapDocks microHDMI connector. If one loop is put in the cable it becomes an ideal length!
Cable adaptor Type B
Plugging into the Raspberry Pi an HDMI male adaptor to microHDMI Female which connects to a cable (approximately 25cm) microHDMI Male to microHDMI Female
Cable adaptor Type C
Plugging into the Raspberry Pi an HDMI male adaptor to microHDMI Female which connects to a cable (approximately 50cm) microHDMI Male to microHDMI Female. If one loop is put in the cable it becomes an ideal length!
If you have a preference as to which type you get please let us know when ordering, please also state if it is a preference or hold order until/if we can supply your choice. Note that if you request a specific cable which is not currently in stock, there may be a long delay before we are able to fulfil your order.
- Price: £49.50 no VAT to pay!
- Free UK delivery on orders of £10 or more! (exceptions apply)
We ship worldwide
Most orders of less than £10 will incur a £3 admin charge.
Items on special offer are while stocks last and may be time limited.
Items marked S/H are secondhand and have a 3 month warranty
Unless otherwise stated, photos are for illustrative purposes only
UK delivery included on orders of £10 or more (exceptions apply), please ask for overseas delivery cost.
Please check for compatibility. Official orders welcome. E&OE
